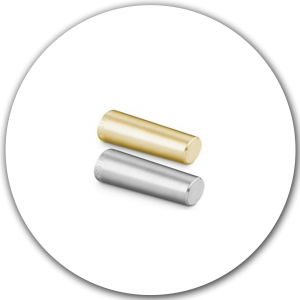

Metal Tube Plugs
Additional media
For permanent plugging of condenser and heat exchanger tubes and tube sheet holes, the one-piece tapered design of the Plug is machined to match specific tube sizes. The one-piece design is a snap to install using a mallet, and can even be welded into place
Features Include:
- Available in brass, bronze, stainless steel and titanium
- Special materials and sizes can be custom manufactured
- Can be machined to your drawing specifications.

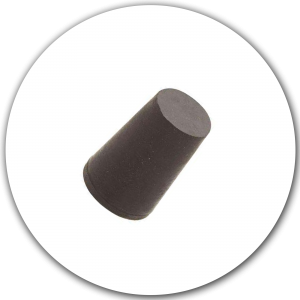

Rubber Tapered Tube Plugs
Product Features
- One size fits multiple port sizes
• Made of resilient neoprene and reusable
• Soft rubber material conforms to provide a tight seal
Product Description
Tapered rubber plugs offer a cost-effective alternative to more costly tube plugs for temporary or low-pressure applications. Rubber tube plugs are typically used for low-pressure isolation or vacuum testing.

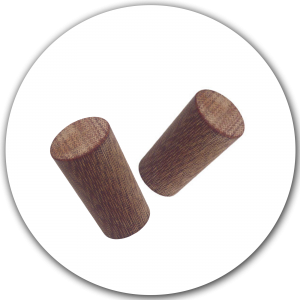

Non-Metal Tube Plugs
Product Features
- Available in wood or fiber (phenolic or micarta)
- Safe, easy to use, corrosion resistant, and easily removed
- Non-metal plugs expand when wet to effectively seal your tubes
Product Description
Non-metal tube plugs for use in emergency situations or for temporary plugging of a condenser, boiler or Fin-Fan® / heat exchanger. Wood plugs are constructed from wood fiber rods.
Both types of non-metal tube plugs install with a simple tap of a rubber mallet and expand upon contact with water. This simple and effective installation process provides an excellent seal, requires minimal manpower and time, and will not damage your tube sheet.

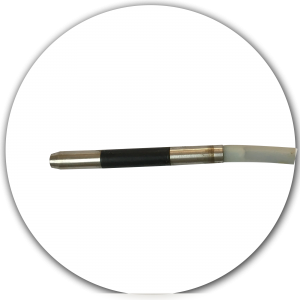

Eddy Current Probe
Eddy current probes are designed for testing non-ferrous materials such as copper, brass, stainless steel, titanium.

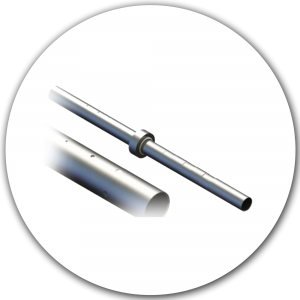

Eddy Current Calibration Tube

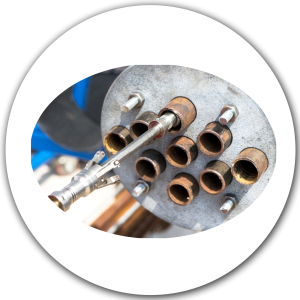

IRIS
IRIS is an ultrasonic based system for inspecting ferrous and nonferrous tubes from the inside. It is based on the Internal Rotating Inspection System (IRIS), which can be applied on almost any material.
